DAIKIN - Directional Control Valves (1)

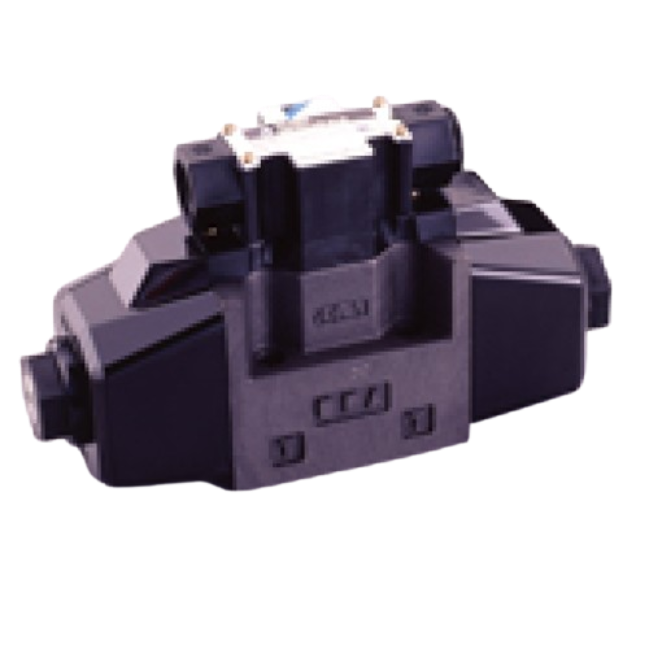

Low-wattage type solenoid valve

LS-G02 is a solenoid valve with low-wattage type coil (DC:5W or AC:12W). Low current requirement for the valve allow it to be driven directly from a programmable sequence controller.

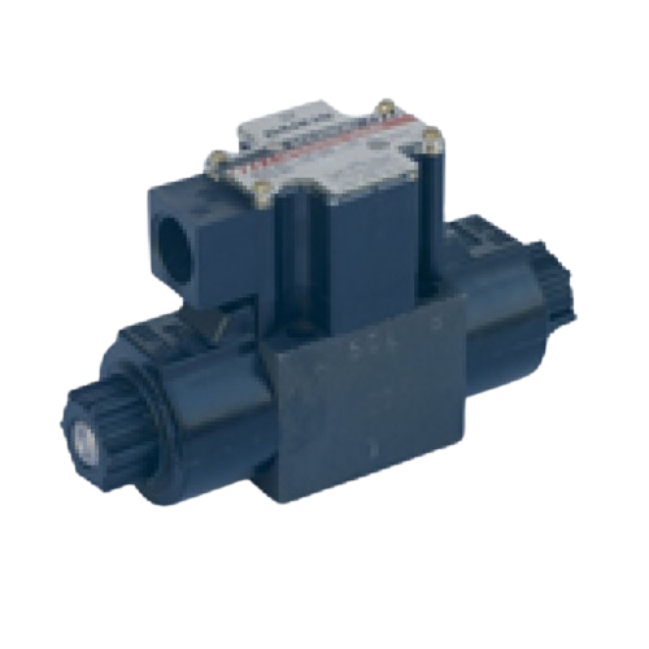

Low-wattage type solenoid valve

LS-G03 is a solenoid valve with low-wattage type coil (DC:5W or AC:12W). Low current requirement for the valve allow it to be driven directly from a programmable sequence controller.

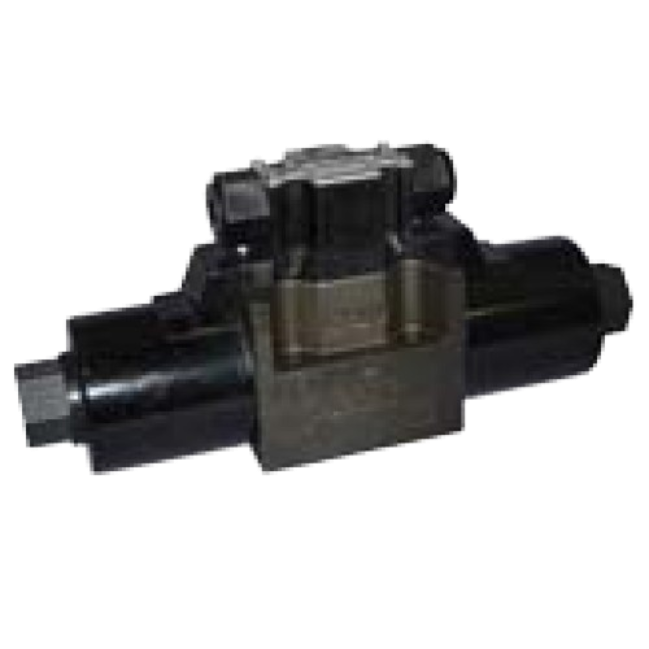

Solenoid valve (type KSO)

Realize high-pressure large-flow-rate control at 35 MPa and 100 L (G02) or 160 L/min (G03)

Minute signal current type solenoid valve

The capability to switch the valve with a minute signal current (approximately 10 mA) enables direct drive from a programmable sequence controller.

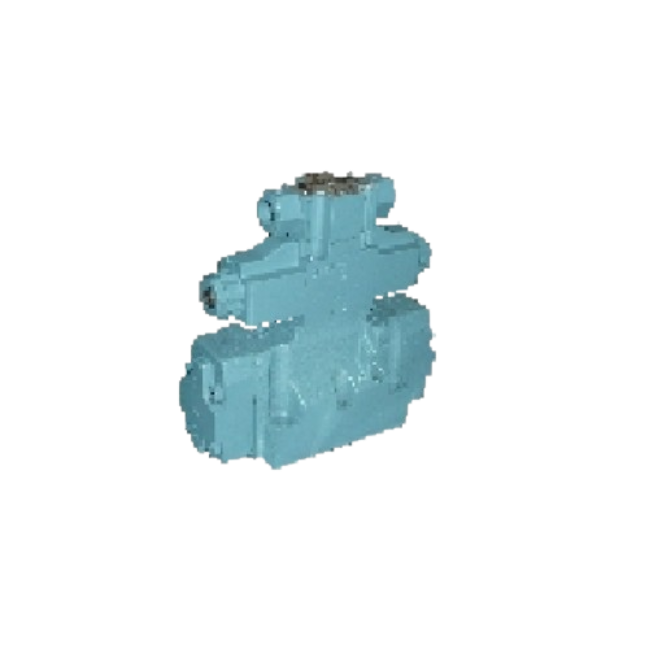

Pilot solenoid operated directional control valve (type JSP)

Adoption of the shockless spool enables smooth reversal and stopping of the load.

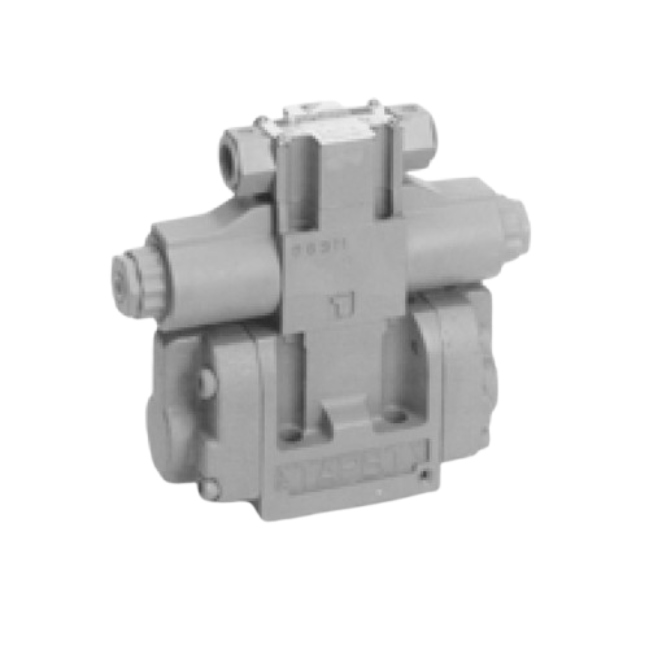

Pilot solenoid operated directional control valve (type KSH-G04)

Realize high-pressure large-flow-rate control at 35 MPa {350 kgf/cm2} and 300 L/min.
