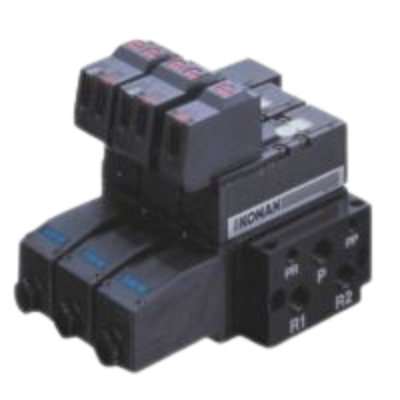

Available are compound manifolds mounting different types of valves（S.D.H.J.I）mixedly.; Optimum wiring connection can be selected according to the site specifications.; Operating confirming Iamp is equipped as standard in every type.

Available are compound manifolds mounting main valves (models 414 and 416)and different types of valves(S.D.H.J.I) mixedly. Optimum wiring connection can be selected according to the site specifications. Piping is also possible to the bottom (A & B ports). Operation indicator lamp is equipped as. Standard in every type.

MVW1F（Normally closed）MVW1RF（Normally open）; Poppet valve system, Direct acting type; Gasket-connected type; Port size：Rc1/8 , Rc1/4 , Rc3/8

MVS2F（Return）MVD2F（Hold）MVPCF（Closed center）MVPOF（Exhaust center）MVPEF（Pressure center）; Spool valve system, Pilot type; Gasket-connected type; Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1

It is aluminum manifold base which allows solenoid valve units to be simply replaced and maintenance. Also both normal open type and normal close type valves can be integrated together with one manifold unit.

The manifold base is simply integrated with solenoid valves by the bolts. It is easy to replace and maintenance the valves individually without disconnecting the main piping. The difference between SP1 and SP2 type is the position of exhaust ports. The exhaust port is on the side of the body for SP1 and on the bottom of the body for SP2. It can also be connected together with three types of solenoid valves, Single acting, double acting and3-position type.
