DAIKIN - Proportional Valves / Servo Valves

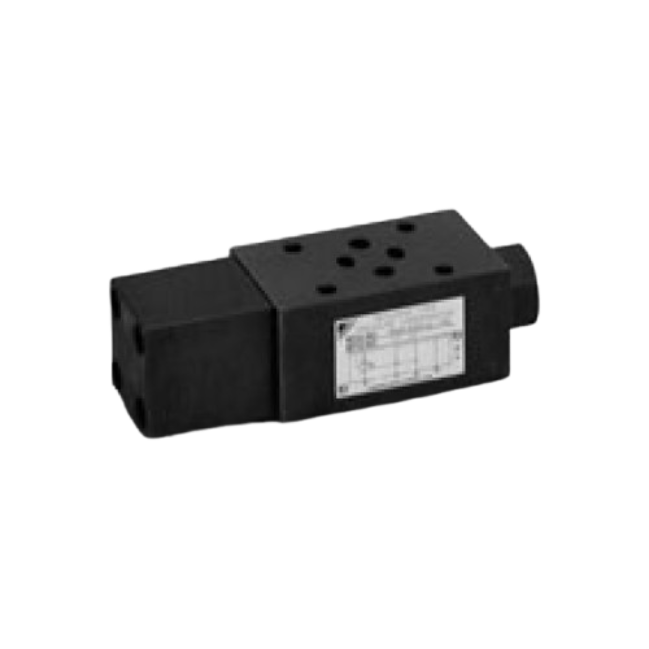

Stacking bypass type pressure compensation valve (for KSP)

Enables proportional flow rate control with pressure compensation by combination with a KSP valve.

Solenoid operated proportional throttle valve

Since it is a four-way proportional throttle valve, it can control the reciprocating process of the actuator and can be used as a shockless switching valve. It corresponds to 35MPa (06 size is 28MPa) and can be used with high-pressure equipment such as press machines.

Pilot solenoid operated proportional directional control valve

These pilot solenoid operated proportional directional control valves use a nozzle flapper valve as pilot valve and perform spool position feedback control by detecting the displacement of the main valve with the differential transformer.

Direct operated servo valve

Ideal for closed loop control of the position, speed, and pressure of main machine’s actuators. High responsiveness is achieved by combining the valve with the dedicated driver.

Pilot solenoid operated servo valve

Ideal for closed loop control of the position, speed, and pressure of main machine’s actuators. The orifice nozzle adopted as the pilot nozzle has a large diameter for a nozzle flapper type valve and achieves greater resistance to contamination.

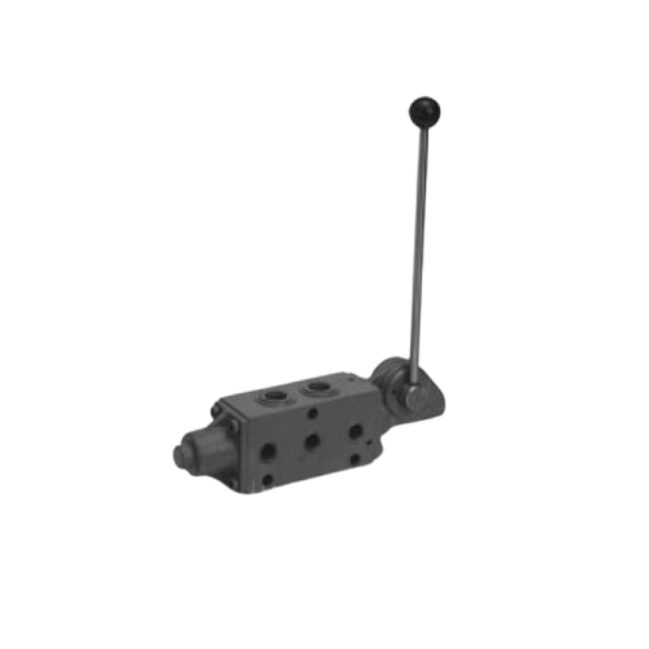

Manual proportional directional control valve (with pressure compensation, multiple valve series)

Stacking type multi-control valves that are equipped with the bypass type pressure compensation function and show proportional flow rate characteristics. The pump pressure can be changed according to variation of the load pressure, with the excess flow bypassed to the tank.
