KONAN - Pneumatic Cylinders

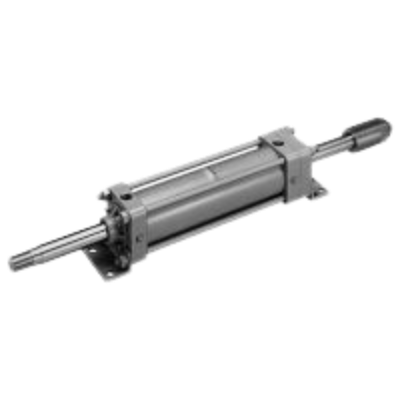

This CP611-based general purpose pneumatic cylinder with adjustable stroke is available in 2 types: AD type adjusts stroke at rod "IN" and AR type at rod "OUT".

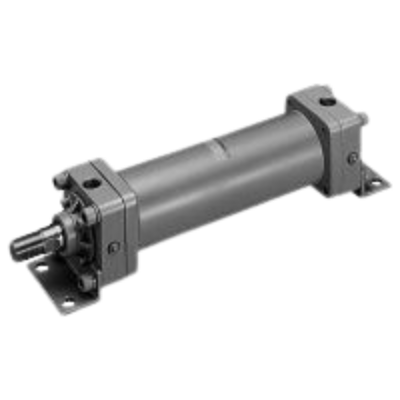

Heavy duty pneumatic cylinder based on CP611S2 with flangewelded cylinder tube.

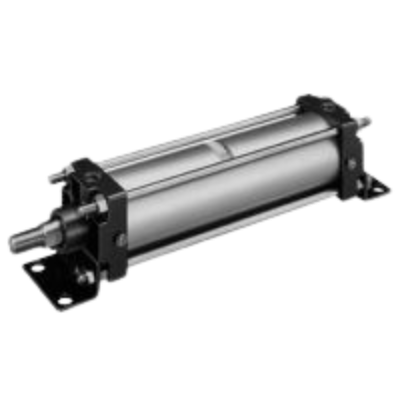

CP665　Standard oilless enclosed type（Bore size：φ40～φ100）

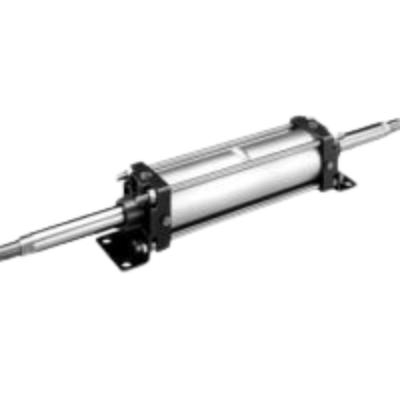

Double rod cylinder designed based on CP665 pneumatic cylinder.

CP665 oilless enclosed cylinder with directly mounted 5-port solenoid valve. This design enables easier piping and reduction in air consumption, thus lowering costs.

Oilless enclosed cylinder based on CP665 with reed switch for detecting stroke position. This cylinder boasts high adaptability regardless of loads or operational environment.

Bore size：12.7mm(1/2")～101.6mm(4"); Space needed for installation is only half that of rod cylinders. 　Problem of bending due to heavy rod can be solved.

Bore size：19.1mm(3/4")～50.8mm(2"); Pneumatic cylinder that returns by gravity. SA series are suitable for load lifting applications. The cylinder supplies pressure only at lifting up a load.; Installation of the cylinder can be horizontal, perpendicular, or slope.
