KONAN - Pneumatic Cylinders

CP665 oilless enclosed cylinder with directly mounted 5-port solenoid valve. This design enables easier piping and reduction in air consumption, thus lowering costs.

Oilless enclosed cylinder based on CP665 with reed switch for detecting stroke position. This cylinder boasts high adaptability regardless of loads or operational environment.

Bore size：12.7mm(1/2")～101.6mm(4"); Space needed for installation is only half that of rod cylinders. 　Problem of bending due to heavy rod can be solved.

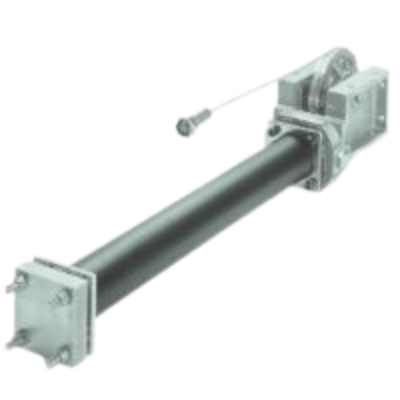

Bore size：19.1mm(3/4")～50.8mm(2"); Pneumatic cylinder that returns by gravity. SA series are suitable for load lifting applications. The cylinder supplies pressure only at lifting up a load.; Installation of the cylinder can be horizontal, perpendicular, or slope.

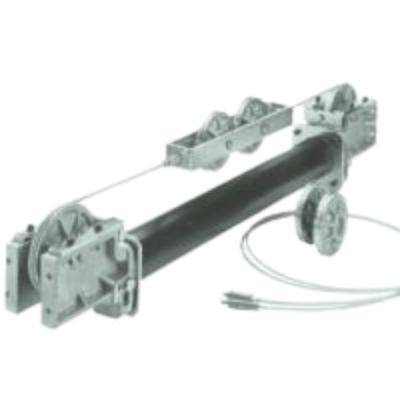

Bore size：38.1mm(1 1/2")～50.8mm(2"); Load can be traveled double the length of cylinder stroke.; Ensures further space-saving compared to standard type.

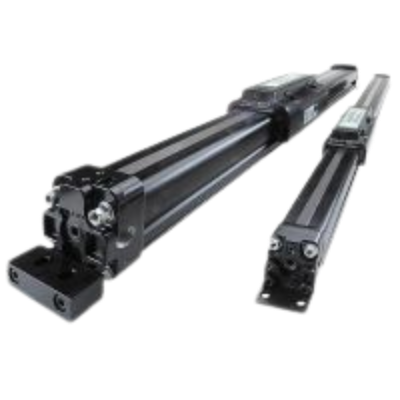

Bore size：12.7mm(1/2")～38.1mm(1 1/2"); TC series cable cylinders with tracking rail have linear bearing at load mounting block.It runs on the quenched ground shaft.
